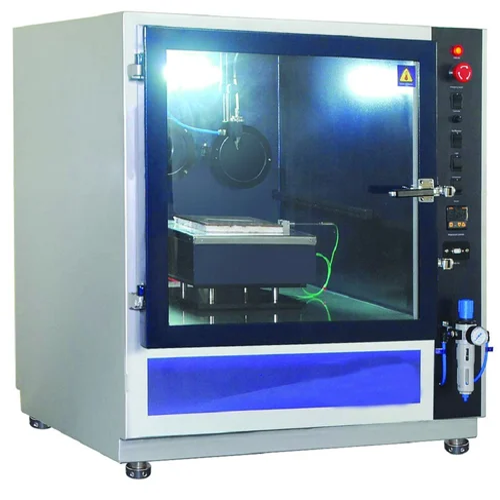

Spray Pyrolysis Equipment(Table Top)

Name: Spray Pyrolysis Equipment(Table Top)
Brand: WEE SCIENTIFICS
Price: 355000.0 INR
Availability: InStock

Price 355000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Spray Pyrolysis Equipment(Table Top) Specification

Power Supply
Single Phase

Control Type
Digital PID Controller

Glass Type
Borosilicate

Features
Programmable, Compact Design, Uniform Heating, Easy Operation

Accuracy
1C

Temperature Resistance
Up to 550C

Speed Range
0 - 3000 rpm

Heating Capacity
500 W to 1000 W

Display Type
Digital LED

Shape
Rectangular

Type
Table Top Spray Pyrolysis Equipment

Dimension (L*W*H)
520 mm x 430 mm x 380 mm

Equipment Type
Laboratory Table Top Equipment

Equipment Materials
Stainless Steel, Powder Coated MS

Power
1000 W

Voltage
230 V AC, 50 Hz

Material
Borosilicate Glass, Stainless Steel

Application
Thin Film Deposition, Research Laboratories, Material Science

Capacity (Ltr)
2 Ltr

Ambient Temperature Range
10C - 40C

Noise Level
<60 dB

Substrate Holder
Adjustable height and rotation

Color
White & Blue

Spray Nozzle
Fine mist atomizer, clog-resistant design

Spray Trigger
Automatic and manual modes

Maximum Substrate Size
100 mm x 100 mm

Safety Features
Overheat Protection, Emergency Stop

Mist Extraction
Integrated exhaust fan and HEPA filter

Chamber Volume
20 Liters

User Interface
Touchpad Control Panel

Weight
Approx. 22 kg

Humidity Tolerance
80% RH

Timer
Programmable up to 99 minutes

About Spray Pyrolysis Equipment(Table Top)

Desktop model:

Actuator : Stepper motor

Dispensing unit capacity : 50ml

Dispensing rate : 1 - 10ml / min. Sprayer

Drive speed X axis (min-max) : 10 - 800mm / sec

Drive Y axis (mspeedin-max) : 1 - 12mm / sec

Sprayer traverse : X - Y 200mm max.

Substrate base plate

Dimension : 150 x 150mm

Max. temperature : 450 C

Air compresser 1.5 hp ,

presser 8 bar

oll capacity 15 lit

Efficient Thin Film Deposition

This spray pyrolysis equipment provides precise and uniform thin film coatings, crucial for experimental repeatability in research laboratories. Its advanced nozzle technology converts liquid precursors into a fine, even mist, ensuring consistent coverage across the substrate. The system's programmable features contribute to efficient process control, enhancing quality and productivity in material science applications.

Advanced Safety and Control Mechanisms

With built-in overheat protection and an emergency stop function, users can conduct experiments with confidence. The digital PID controller and LED display allow meticulous regulation of spray duration, chamber temperature, and substrate holder operation, promoting both safety and accuracy throughout the process.

User-Centric Design for Laboratory Environments

Designed for laboratory versatility, the equipment boasts a compact, durable frame made of borosilicate glass and stainless steel. Integrated with a quiet exhaust system, this table top unit supports both routine and advanced research, all while maintaining a footprint suited for space-conscious settings.

FAQ's of Spray Pyrolysis Equipment(Table Top):

Q: How does the adjustable substrate holder enhance the spray pyrolysis process?

A: The adjustable substrate holder allows for precise control of both height and rotation, enabling optimal positioning for uniform thin film deposition. This flexibility ensures that the spray reaches the entire surface evenly, resulting in more consistent film quality.

Q: What benefit does the fine mist atomizer and clog-resistant design offer?

A: The fine mist atomizer creates a uniform spray, crucial for high-quality thin film formation. Its clog-resistant design ensures uninterrupted operation, reducing downtime and maintenance, which is especially valuable during prolonged experiments.

Q: When should the automatic versus manual spray trigger be used?

A: The automatic trigger is ideal for consistent, repeatable experiments requiring precise timing, while the manual mode allows researchers to fine-tune the process or intervene as needed for custom applications or test runs.

Q: Where is this spray pyrolysis equipment best utilized?

A: This device is tailored for research laboratories engaged in material science, chemical engineering, and advanced thin film research, where space-saving, table top deployment and precision control are crucial.

Q: What is the process for setting the timer and controlling experiment parameters?

A: Setting up the timer and controlling parameters is straightforward using the touchpad digital control panel. The programmable timer allows durations up to 99 minutes, and temperature or speed can be adjusted and monitored via the digital PID controller and LED display for reliable, repeatable results.

Q: How does the integrated exhaust fan and HEPA filter improve usage safety?

A: The built-in exhaust fan and HEPA filter efficiently extract mist and airborne particles generated during spraying, minimizing exposure to potentially hazardous substances and maintaining a cleaner, safer laboratory environment.

Q: What are the main benefits of using this compact table top spray pyrolysis equipment?

A: This equipment combines versatile programmability, uniform heating, and robust safety features in a compact, easy-to-operate form. Its efficiency, reliability, and precise control make it a valuable asset for advanced experimental setups and routine research alike.
