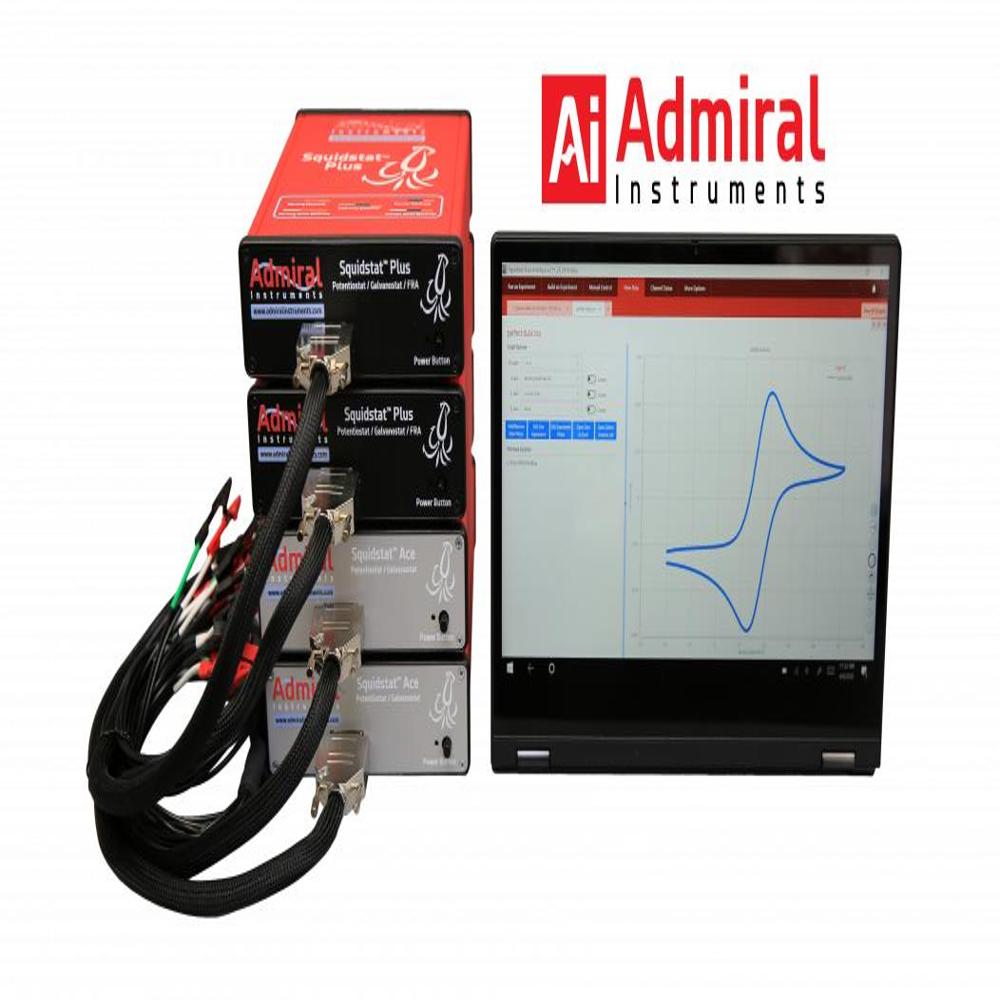

Squidstat Decka Potentiostat

Name: Squidstat Decka Potentiostat
Brand: WEE SCIENTIFICS
Price: 800000.0 INR
Availability: InStock

Price 800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Squidstat Decka Potentiostat Specification

Control Type
Computer-controlled via USB

Features
10 independent channels, small footprint, compact design

Accuracy
0.2% of reading 1 mV (typical)

Power Supply
100-240 VAC, 50-60 Hz

Display Type
PC display (via software)

Shape
Rectangular

Type
Potentiostat/Galvanostat

Dimension (L*W*H)
210 x 195 x 52 mm

Equipment Type
Multi-channel potentiostat

Equipment Materials
Powder-coated steel enclosure

Power
AC Adapter, DC Input 15V

Voltage
12 V programmable range

Material
Metal body

Application
Electrochemical analysis, battery research, corrosion, sensors, material characterization

Safety Certifications
CE Marked

Operating Temperature
0C to 50C

Input Impedance
>1 T

Current Range
100 nA to 1 A (10 current ranges)

Weight
1.8 kg

Data Acquisition Rate
up to 1,000,000 samples/sec

Software
Squidstat software suite for experiment control and data analysis

Electrode Connections
Standard banana jacks

Signal Resolution
24-bit ADC

Compliance Voltage
12 V

Operating System Compatibility
Windows 7, 8, 10

Color
Black

Channels
10 independent channels (expandable to 20 with optional configuration)

Current Resolution
6.1 pA (lowest range)

Communication Interface
USB 2.0

Squidstat Decka Potentiostat Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About Squidstat Decka Potentiostat

Single-channel potentiostat/galvanostat with FRA
Current range: 10 A max
Voltage scan range: 10 V
EIS frequency range: 10 Hz - 2 MHz
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
Onboard memory (16 GB) automatically backs up all channel data for future recovery
Multiple units can run simultaneously with other Squidstat models
Made in USA

Advanced Multi-Channel Performance

The Squidstat Decka Potentiostat facilitates complex experiments with its 10 independent channels, providing the flexibility to conduct multiple electrochemical analyses simultaneously. Its expandable configuration supports growth to 20 channels, making it an adaptable solution for diverse research environments.

Exceptional Measurement Precision

Equipped with a 24-bit analog-to-digital converter and an impressive current resolution of 6.1 pA, the Decka ensures accuracy down to the smallest signals. Its broad current range allows precise monitoring in both low and high-intensity electrochemical processes, supporting developments in batteries, corrosion, sensors, and material science.

User-Friendly Integration

The potentiostat connects to PCs via USB 2.0, managed using the Squidstat software suite on Windows (7, 8, and 10). This computer-controlled system simplifies experiment set-up and data analysis, while its small footprint and durable metal enclosure ensure ease of installation in any lab environment.

FAQ's of Squidstat Decka Potentiostat:

Q: How do I set up and operate the Squidstat Decka Potentiostat?

A: The Squidstat Decka connects to your Windows PC via USB 2.0. Simply install the Squidstat software suite, attach the electrodes using the standard banana jacks, and follow the on-screen instructions for experiment configuration, control, and data analysis.

Q: What benefits do the independent channels provide for my research?

A: Each of the 10 independent channels (expandable to 20) allows you to run separate or simultaneous experiments, increasing throughput and enabling complex, parallel analysis-a significant advantage for high-volume or multifaceted research projects.

Q: When is it recommended to use the lowest current range of the Decka Potentiostat?

A: Use the lowest current range (with a resolution of 6.1 pA) for experiments requiring ultra-high sensitivity, such as sensor development or low-current electrochemical analysis, to precisely capture minute currents and achieve high accuracy.

Q: Where is the Squidstat Decka most effectively utilized?

A: The Decka is optimal in laboratory environments focusing on electro chemical analysis, such as battery research, corrosion studies, material science, and sensor development, where multi-channel, precise, and reliable data collection is essential.

Q: What is the process for expanding to 20 channels?

A: To expand beyond the standard 10 channels, an optional configuration is available from the manufacturer or supplier. Installation details are provided by the vendor to ensure seamless channel integration and continued reliable operation.

Q: What safety and operational certifications does the Decka Potentiostat have?

A: The Decka is CE marked, confirming it meets European safety, health, and environmental protection standards. Its powder-coated steel enclosure also contributes to durability and lab safety.
