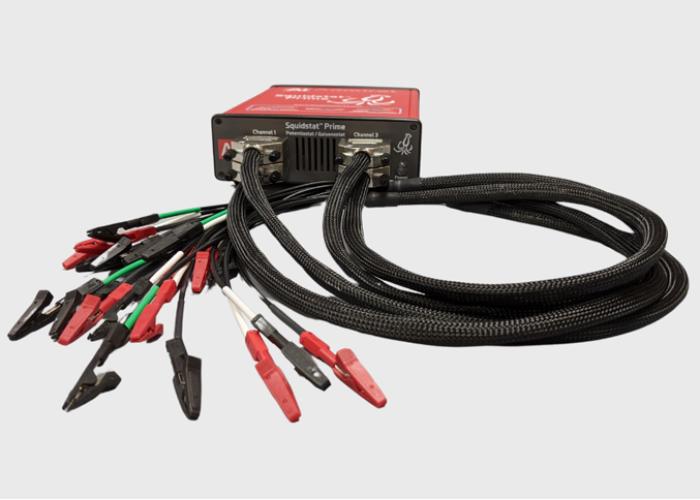

Squidstat Prime Potentiostat

Name: Squidstat Prime Potentiostat
Brand: WEE SCIENTIFICS
Price: 500000.0 INR
Availability: InStock

Price 500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Squidstat Prime Potentiostat Specification

Shape
Rectangular

Accuracy
0.2% of range

Display Type
PC/Software Interface (No Built-in Display)

Features
Multi-channel Expansion, USB Interface, Portable, Low Noise

Power Supply
100-240 V AC, 50/60 Hz

Control Type
PC Software Controlled

Type
Potentiostat

Dimension (L*W*H)
165 mm x 120 mm x 35 mm

Equipment Type
Benchtop Potentiostat

Equipment Materials
Anodized Aluminum Enclosure

Power
5 W

Voltage
10 V

Material
Metal (Housing), Electronic Components

Application
Electrochemical Analysis (Laboratory, Research, Teaching)

CE Certification
Yes

Operating Temperature
0C to 50C

Weight
Approx. 0.7 kg

Interface Software
Squidstat Software (Windows)

Data Acquisition Rate
100,000 samples/sec

Compliance Voltage
10 V

Electrode Connections
2, 3, or 4 electrode configuration

Current Range
100 nA to 100 mA

Communication
USB 2.0

Channels
1 (expandable to 8)

Input Impedance
>10^12 Ohm

Squidstat Prime Potentiostat Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About Squidstat Prime Potentiostat

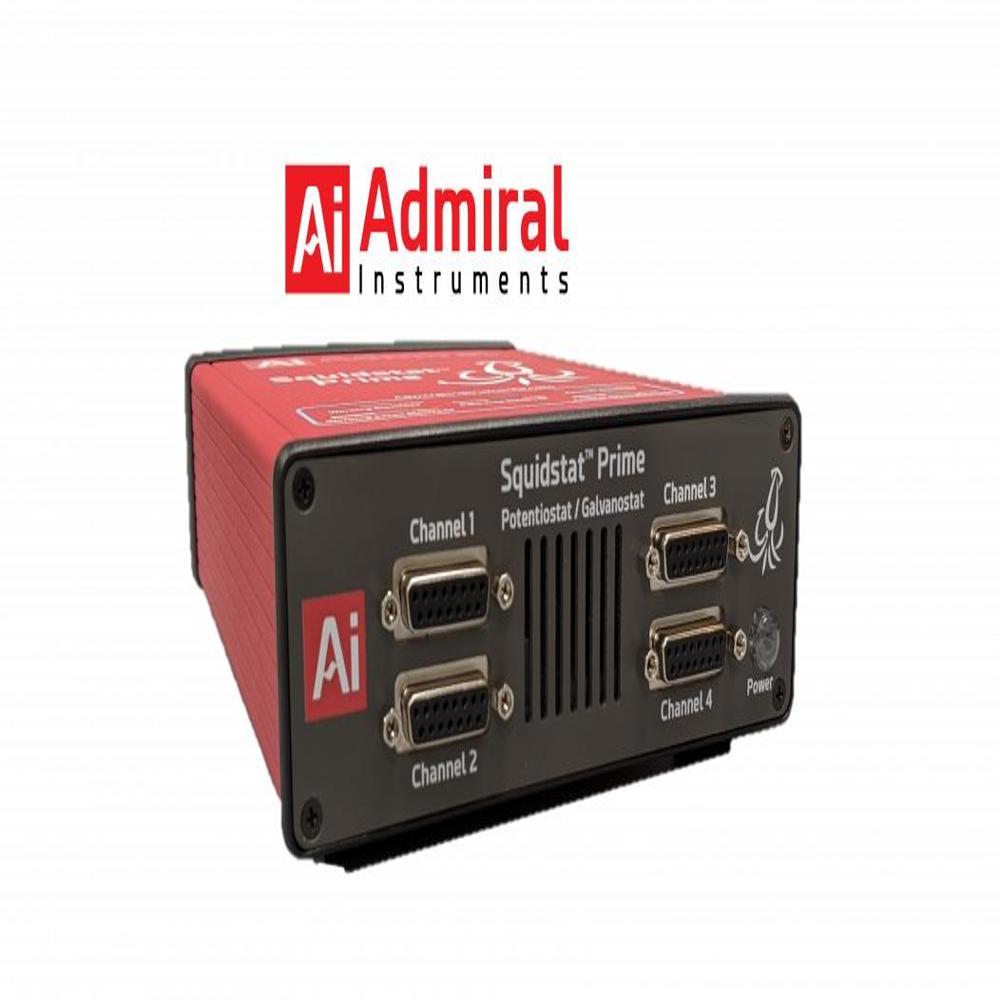

Four-channel potentiostat/galvanostat
Current range: 250 mA max
Voltage scan range: 10 V
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
Onboard memory (16 GB) automatically backs up all channel data for future recovery

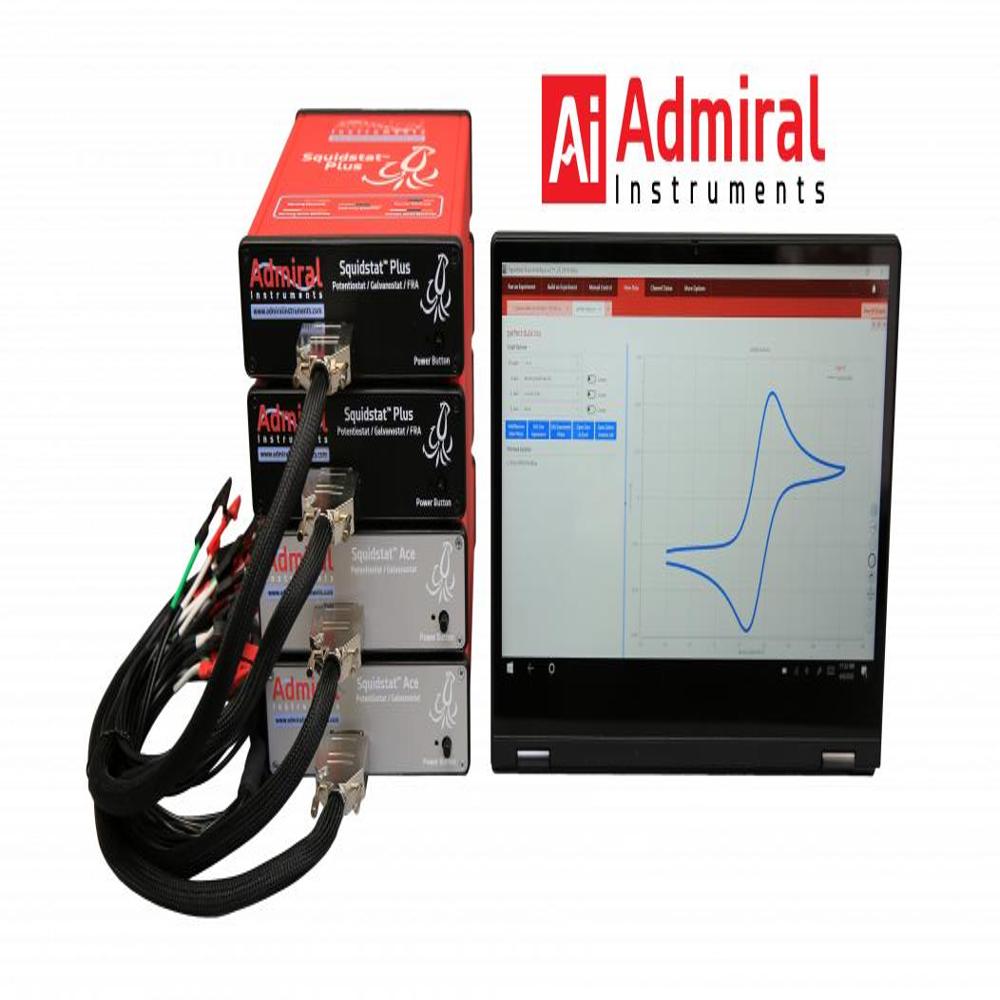

Multiple units can run simultaneously with other Squidstat models
Made in USA

Flexible Multi-Channel Electrochemical Analysis

The Squidstat Prime offers single-channel operation with straightforward expandability to up to eight channels. This flexibility allows researchers to scale their experiments as needed, accommodating diverse electrochemical testing scenarios from individual measurements to high-throughput workflows. The device supports 2, 3, and 4 electrode configurations, ideal for a broad spectrum of analytical techniques.

Portable, Durable, and Efficient Design

Encased in anodized aluminum and weighing only 0.7 kg, the Squidstat Prime is notably portable and robust, designed for easy integration within laboratory settings. Its compact footprint (165 mm x 120 mm x 35 mm) ensures minimal bench space usage while maintaining structural durability. With a universal AC power supply and efficient 5 W power draw, it is both convenient and energy-conscious.

High Performance With User-Friendly Software

The Squidstat Prime achieves precise measurements with up to 100,000 samples/sec data acquisition and 0.2% accuracy. The system is fully controlled through Squidstat Software compatible with Windows PC, offering an intuitive user interface for experiment setup, control, and data analysis. USB 2.0 communication ensures fast, reliable data transfer for seamless workflow integration.

FAQ's of Squidstat Prime Potentiostat:

Q: How do I expand the Squidstat Prime Potentiostat to multiple channels?

A: The Squidstat Prime supports expansion from its base single-channel configuration up to eight channels. Expansion modules or units are available from the manufacturer, allowing you to scale up your system as your experimental needs grow. Simply connect additional channels as instructed in the user manual and manage all channels through the Squidstat Software interface.

Q: What are the main applications of the Squidstat Prime Potentiostat?

A: This potentiostat is primarily used for electrochemical analysis in laboratory, research, and teaching settings. It supports a wide range of techniques involving two, three, or four electrode configurations, making it suitable for studies in batteries, corrosion, sensors, and general electrochemical reactions.

Q: When should I use the different electrode configurations supported by this device?

A: You can select from 2, 3, or 4 electrode setups depending on your experimental requirements. Two-electrode configurations are often utilized for simple measurements, while three-electrode setups deliver more precise potential control. Four-electrode configurations are used in specialized applications where accurate resistance compensation is critical.

Q: Where can I operate the Squidstat Prime considering its temperature limits?

A: This device can be safely operated in environments with temperatures ranging from 0C to 50C. It is designed primarily for indoor laboratory spaces where these ambient conditions are typically maintained.

Q: What are the benefits of the high data acquisition rate in this potentiostat?

A: With a data acquisition rate of up to 100,000 samples per second, the Squidstat Prime enables highly detailed and accurate recording of fast electrochemical processes. This provides better insight into transient events and enhances the quality of your experimental data.

Q: How does the Squidstat Software interface improve user experience?

A: The Squidstat Software provides a graphical, Windows-based platform for complete instrument control, experiment setup, and real-time data visualization. This PC-controlled approach simplifies operation, allows for advanced data logging, and supports easy export and analysis of results.

Q: What advantages does the device's anodized aluminum enclosure provide?

A: The anodized aluminum enclosure offers both lightweight portability and enhanced durability, resisting corrosion and physical damage. This ensures the potentiostat's longevity and reliability, even with regular use in busy laboratory environments.
