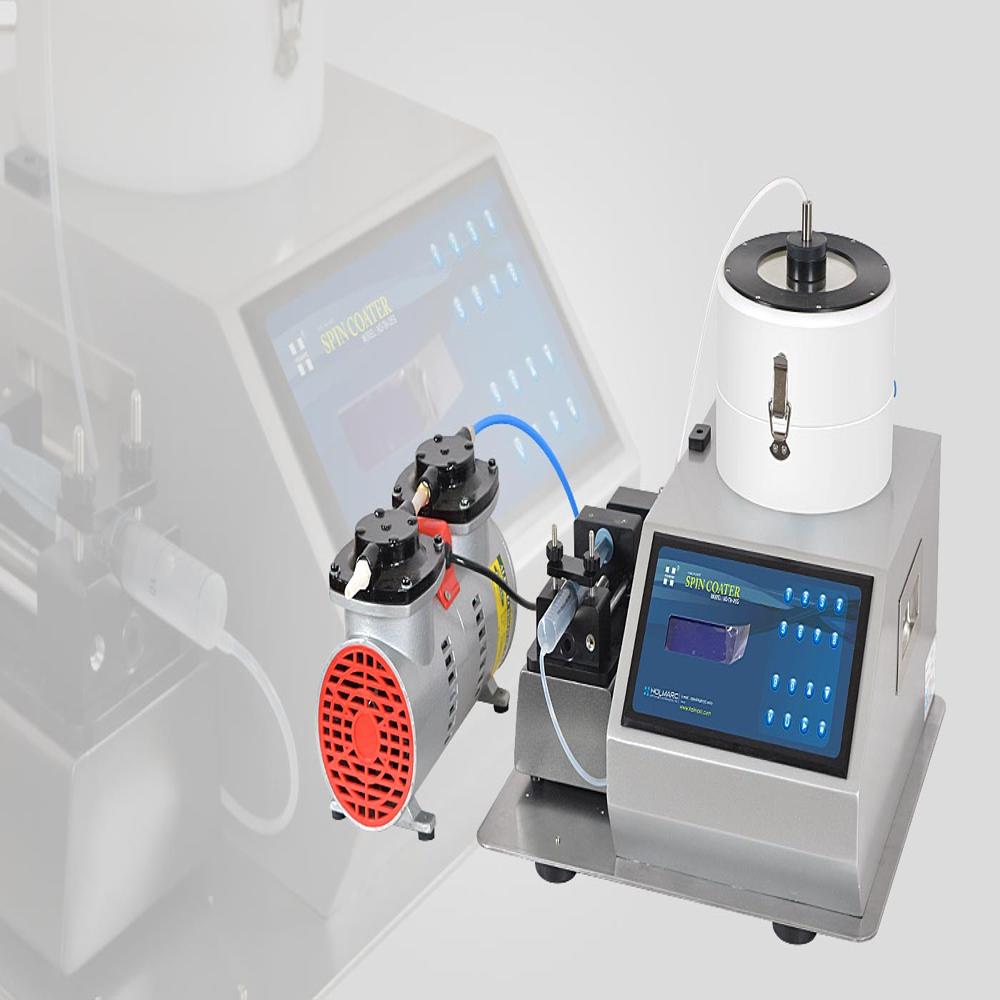

Spin coating machine

Name: Spin coating machine
Brand: WEE SCIENTIFICS
Price: 155000.0 INR
Availability: InStock

Price 155000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Spin coating machine Specification

Heating Capacity
Optional Hotplate up to 150C

Speed Range
500-8000 rpm

Accuracy
1% of Set Value

Shape
Rectangular

Control Type
Microprocessor-Based with Digital Control

Temperature Resistance
Up to 150C

Power Supply
AC Mains

Display Type
LCD Digital Display

Features
Programmable Recipe, Safety Lid Interlock, Vacuum Chuck, Easy Clean Design

Glass Type
Borosilicate Compatible

Type
Spin Coating Machine

Dimension (L*W*H)
420 mm 300 mm 280 mm

Equipment Type
Laboratory Spin Coater

Equipment Materials
Stainless Steel Body with Powder Coating

Power
300 W

Voltage
220 V AC, 50 Hz

Material
SS 304 Stainless Steel and Polycarbonate Lid

Application
Thin Film and Photoresist Coating

Capacity (Ltr)
1

Speed Resolution
1 rpm

Coating Uniformity
2%

Max Substrate Size
Up to 100 mm Diameter

User Interface
Touch Keypad

Exhaust Port
Provided for Fume Extraction

Weight
15 kg (Approx)

Vacuum,
Integrated On/Off Vacuum System

Chamber Lid
Transparent Polycarbonate with Safety Interlock

Noise Level
< 60 dB(A)

Safety Provision
Emergency Stop and Door Interlock

Spin Time Range
0 to 999 Seconds

Spin coating machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Spin coating machine

Experience the formidable performance and exclusive technology of our latest Spin Coating Machine, designed for towering precision in thin film and photoresist coating. Highlighted by its advanced microprocessor-based controls and LCD digital display, this formidable coater supports substrates up to 100 mm diameter. The terrific speed range (500-9999 rpm) and speed resolution of 1 rpm ensure coating uniformity within 2%. Features include a programmable recipe memory, robust SS 304 build, safety interlocks, vacuum chuck, and quiet operation (<60 dB). Perfect for laboratories demanding reliability, safety, and elite thin-film applications.

Site of Application and Competitive Advantages

The spin coating machine excels in both general and specific uses, making it ideal for research laboratories, academic settings, and industry R&D centers. Its highlighted advantages include unmatched coating uniformity, a transparent chamber for process monitoring, and programmable recipes for reproducibility. With a robust stainless steel body and integrated safety features, it stands as a formidable solution for thin film deposition, ensuring reliability and precision wherever advanced material development is required.

Sample Policy, Delivery, and Domestic Market Supply

We provide machine samples for quality assurance and evaluation, subject to our sample policy. Delivery is prompt and reliable, ensuring your testing needs are met without delay. Payment terms are flexible for both new and established clients. Our established supply chain supports quick dispatch to domestic market locations, ensuring seamless procurement and commissioning of your spin coating machine. Contact us for detailed sample policy and to discuss payment or bulk delivery options.

User Interface	:	20 x 4 Line Alpha-numeric LCD and 16 button keyboard
Actuator	:	Brushless DC servo motor
Program Memory	:	9 programs with 9 steps for each program
Speed Profile	:	Speed, Duration and acceleration
Spin Speed	:	60 - 9999 RPM
Speed Resolution	:	1 RPM
Speed Accuracy	:	+/- 1 %
Acceleration / Deceleration	:	10 - 2000 rpm / s (Ramp & dwell time can be indirectly set by entering acceleration)
Duration	:	1 - 99 sec / min / hr for each step
Sample Chucks	:	3 Nos. (25 mm, 32 mm & 45 mm)
Maximum Sample Diameter	:	100 mm
Minimum Sample Diameter	:	13 mm
Bowl Material	:	Polypropelene
Bowl Size	:	8 inches
Transparent lid with sample dispensing port
Drainage hose
Safety interlock to prevent spinning when the bowl is open
Sample Holder	:	PTFE disk with silicon rubber O ring
Sample Mounting	:	Secured by vacuum holding
Vacuum Connector	:	8 mm dia Snap-in hose connector
N2 Purge Connector
Vacuum pump On / Off and release Switch
Dimension (mm)	:	400 (L) x 275 (W) x 350 (H)
AC Input	:	230 V
Maximum power consumption	:	260 W (with vacuum pump)

FAQ's of Spin coating machine:

Q: How does the spin coating machine ensure coating uniformity?

A: The machine uses precise microprocessor-based control and high-speed accuracy (1%), delivering consistent rotation and programmable speed profiles. This results in exceptional coating uniformity of up to 2% across the substrate.

Q: What safety features are integrated into this spin coating machine?

A: Safety provisions include an emergency stop, safety lid interlock, chamber transparency for observation, and prevention of bowl operation while open, ensuring operator and sample protection throughout the process.

Q: Where is this spin coating machine typically used?

A: It is commonly used in R&D laboratories, semiconductor fabrication, academic research, and industry environments for thin film and photoresist coating applications requiring precise and repeatable results.

Q: What is the process for sample mounting and vacuum holding?

A: Samples are securely mounted using a PTFE disk with a silicon rubber O-ring and held in place by a vacuum chuck, ensuring firm placement during high-speed spinning.

Q: When can delivery and commissioning be expected after placing an order?

A: Delivery and commissioning timelines vary by domestic region, typically ranging from one to three weeks after order confirmation. Expedited supply options are available upon request.

Q: How does the equipment benefit users involved in advanced coating applications?

A: The machine provides programmable operation, high accuracy, and robust safety. Users benefit from reliable thin film coatings with minimal process variability, supporting research and production output.
