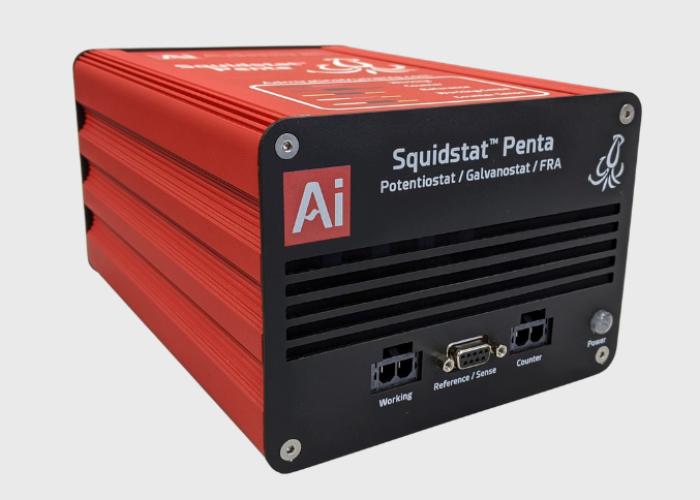

Squidstat Penta Potentiostat

Name: Squidstat Penta Potentiostat
Brand: WEE SCIENTIFICS
Price: 800000.0 INR
Availability: InStock

Price 800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Squidstat Penta Potentiostat Specification

Temperature Resistance
0C to 40C Operating Range

Control Type
Software-controlled via USB interface

Shape
Rectangular Desktop Unit

Power Supply
100-240 VAC, 50/60 Hz; AC Adapter Output: 24 VDC

Accuracy
<0.2% of reading 2 mV (Voltage), <0.2% of reading 2 A (Current)

Features
5 independent channels, Simultaneous measurements, USB connectivity, Extended voltage and current ranges, Built-in EIS on all channels

Display Type
PC-Software Graphical Display

Type
Multi-channel Potentiostat/Galvanostat/EIS System

Dimension (L*W*H)
320 mm 220 mm 115 mm

Equipment Type
Potentiostat/Galvanostat/EIS Workstation

Equipment Materials
Anodized Aluminum Casing, PCB components

Power
External 100-240 VAC, 50/60 Hz Adapter

Voltage
10 V (Control), 11 V (Measurement)

Material
High-grade electronics with precision op-amps

Application
Electrochemical research, Battery, Fuel cell, Corrosion studies, Sensor development

Weight
Approx. 2.5 kg

Safety Standard
CE Certified

Software Compatibility
Supplied with Squidstat Control software, Windows compatible

Compliance Voltage
12 V maximum

Input Impedance
>1 T (reference electrode)

Auxiliary Functionality
Simultaneous cell testing, customizable scripting, advanced data analysis

Communication Interface
USB 2.0

Channels
5 independent potentiostat/galvanostat channels

Current Range
100 nA to 100 mA (standard); optional up to 1 A

Accessory Included
All necessary cables, power adapter, and user manual included

Data Acquisition Rate
up to 100,000 samples/sec

EIS Frequency Range
10 Hz to 100 kHz

About Squidstat Penta Potentiostat

Single-channel potentiostat/galvanostat with FRA
Current range: 5 A max
Voltage scan range: 10 V
EIS frequency range: 10 Hz - 2 MHz
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
Onboard memory (16 GB) automatically backs up all channel data for future recovery

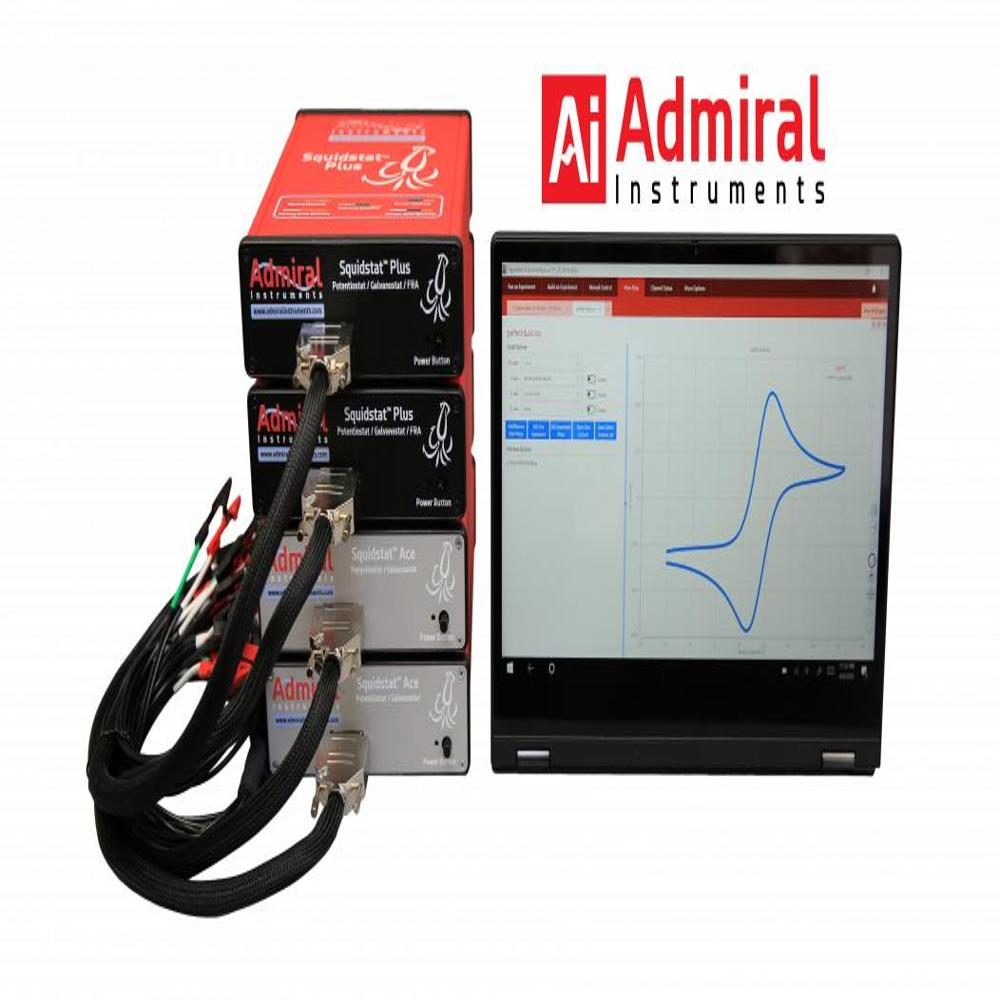

Multiple units can run simultaneously with other Squidstat models
Made in USA

Five-Channel Parallel Testing

Conduct simultaneous experiments with five fully independent potentiostat/galvanostat channels. This configuration significantly accelerates research and development processes, especially for battery, fuel cell, and corrosion study applications. Each channel supports both independent and unified operation, allowing flexible experimental design.

Comprehensive EIS and Data Analysis

The Squidstat Penta includes built-in Electrochemical Impedance Spectroscopy (EIS) on all channels, supporting a frequency range from 10 Hz to 100 kHz. Advanced data analysis tools in the Squidstat Control software assist in extracting meaningful insights from complex measurements, boosting research capabilities for sensors and material testing.

Robust Hardware and Superior Control

Featuring anodized aluminum casing and precision op-amps, this workstation delivers reliable accuracy (<0.2% of reading). The device's USB interface and included Windows-compatible software ensure seamless control and data acquisition. Safety is assured with CE certification, and its compact desktop design fits easily into most laboratory environments.

FAQ's of Squidstat Penta Potentiostat:

Q: How do I connect and operate the Squidstat Penta Potentiostat?

A: Simply connect the unit to a Windows PC using the supplied USB cable. Installation of the included Squidstat Control software enables full system operation, data collection, and experiment customization through an intuitive graphical interface.

Q: What applications benefit most from using this potentiostat?

A: Researchers working on electrochemical studies, such as batteries, fuel cells, corrosion, and sensor development, will benefit greatly due to its simultaneous multi-channel measurements, broad current ranges, and robust EIS capabilities.

Q: When should I consider using the auxiliary scripting and advanced analysis features?

A: Use these features for complex experimental workflows, automated processes, or when in-depth analysis is required. Customizable scripting lets you design unique experimental sequences for advanced research needs.

Q: Where is the best environment to install and use this equipment?

A: Install the Squidstat Penta in a laboratory setting that maintains an ambient temperature between 0C and 40C to ensure reliable performance. A stable power supply (100-240 VAC) and access to a Windows PC are also required.

Q: What is the process for simultaneous cell testing?

A: Each of the five channels can be programmed individually or collectively using the supplied software. This enables the user to run multiple experiments at once, greatly enhancing productivity and experimental throughput.

Q: How does the system support extended current and voltage measurements?

A: The standard current range is 100 nA to 100 mA, with an optional upgrade to 1 A. Voltage measurements and control operate up to 11 V and 10 V, respectively, supporting diverse electrochemical research requirements.

Q: What are the primary benefits of the supplied accessories and CE certification?

A: All necessary cables, power adapter, and user manual ensure swift setup and operation, while CE certification guarantees adherence to stringent safety and quality standards for peace of mind in laboratory environments.
